Technicals & product Standards
Naturally we want you to enjoy your shiny new gaming chair and hope that it brings you both great comfort and long lasting durability.
We also wish for you to be safe and sure in the knowledge that Xilium-G chairs have been designed and built with the highest quality materials and conform to the highest industry standards.
The details of which can be found here along with other useful information
xilium-g dimensions
chair
seat height
400mm - 525mm
chair height
940mm - 1180mm (Floor to top of back pads)
backrest width
450mm
backrest pads height
490mm
seat depth

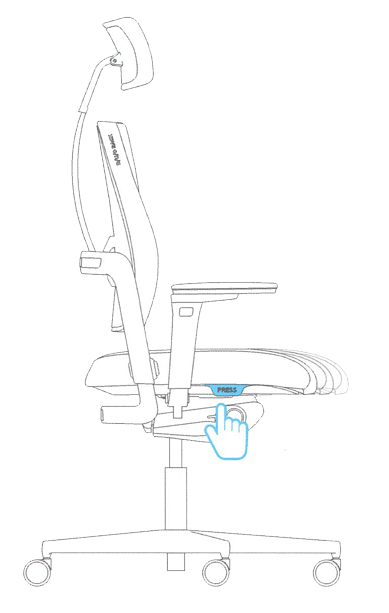

370mm - 495mm (This is the useable seat depth inc. seat slide)
seat pan depth
500mm
seat width
450mm
neckrest height
230mm - 290mm (From top of backrest to top of neckrest cushion
backrest height
500mm - 610mm (Seat top of backrest pads)
base diameter
735mm
weight
Chair: 15.5kg
Armrests: 3.2kg
Total: 18.7kg
armrests
height
200mm - 300mm (seat to top of armrest pad)
pad length
240mm
internal width between arms
280mm - 650mm (inc. pad rotation & underseat width adjustment)
external width between arms
480mm - 850mm (inc. pad rotation & underseat width adjustment)
pad width
100mm
Frame finishes - colour concept
xilium-G blue
xilium-G red
xilium-G B&W
Elements in black:
-
Armrest top pads
-
Vertical armrest column
-
Backrest outer shells
-
Upper & lower backrest frame
-
Neckrest outer shell
-
Neckrest vertical support column
-
Gas lift
-
Castors
Elements in blue:
-
Backrest height adjustment buttons
-
5-Star base
Elements in black:
-
Armrest top pads
-
Vertical armrest column
-
Backrest outer shells
-
Upper & lower backrest frame
-
Neckrest outer shell
-
Neckrest vertical support column
-
Gas lift
-
Castors
Elements in red:
-
Backrest height adjustment buttons
-
5-Star base
Elements in white:
-
Vertical armrest column
-
Backrest height adjustment buttons
-
Backrest outer shells
-
Upper & lower backrest frame
-
Neckrest outer shell
-
Neckrest vertical support column
Elements in black:
-
Armrest top pads
-
Gas lift
-
Castors
night vision
Ok, so not quite night vision but a pretty cool detail.
The white logo and branding on the seat, backrest pads and neckrest are embroidered with phosphorescent stitching which after absorbing daylight, will glow-in-the dark for a period of time.
No batteries required
product materials
base
Ø735mm five-star aluminium powder coated in
​
RAL 3002 Carmine Red
RAL 5023 Distant Blue
RAL 9006 White aluminium
castors
Ø65mm black self braking castors for hard or soft
floor surfaces

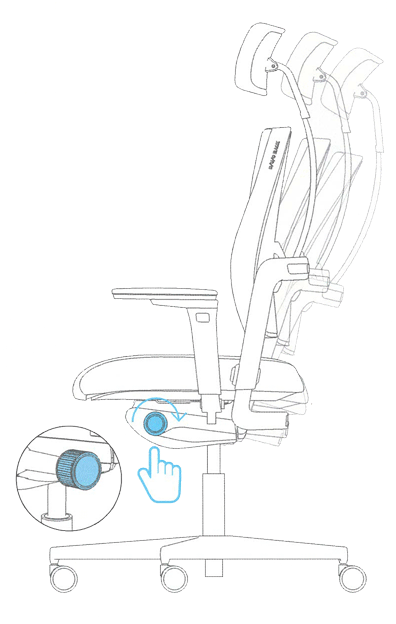

mechanism
-
ER-ST synchronous mechanism
-
Free-floating - synchronous backrest and seat tilt.
-
Backrest tilt synchronized with the seat at a ratio of 2.5:1
-
Maximum backrest tilt angle of 30°
-
Backrest recline lockable in 5 positions
-

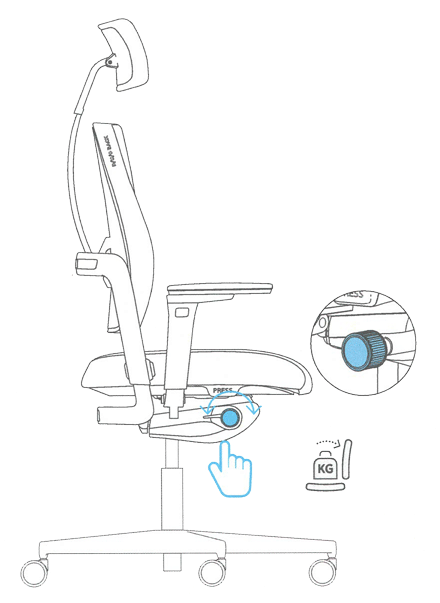

Weight resistance adjustable to user weight of 45-150kg
seat
Inner and outer seat shell made from polypropylene (PP) covered with injected foam. Foam thickness 50mm, density 65kg/m2
​
For Xilium-G Red, seat upholstered in Sempre SM01 fabric with side panels in Sempre SM12.
​
For Xilium-G Blue, seat upholstered in Bondai BN8033 fabric with side panels in Bondai BN6006
​
For Xilium-G B&W, seat upholstered in Sempre SM01 with side panels in Sempre SM01.
backrest

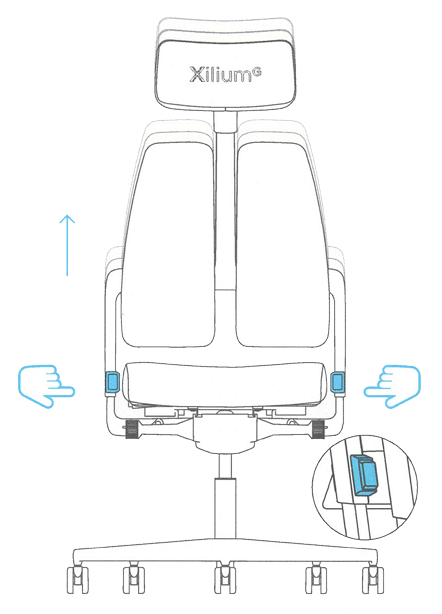

Height adjustable with a range of 110mm. Lockable in 12 positions with two buttons on the backrest supporting frame. Buttons match the colour version of the chair (red or blue)
​
DuoBack® backrest structure made of polypropylene (PP) covered with injected foam. Thickness 35mm, density 80kg/m2
​
Backrest outer shells made of black polyproylene (PP)
​
For Xilium-G Red, backrest upholstered in Sempre SM01 fabric with side panels in Sempre SM12.
​
For Xilium-G Blue, backrest upholstered in Bondai BN8033 fabric with side panels in Bondai BN6006
​
For Xilium-G B&W, backrest upholstered in Sempre SM01 fabric with side panels in Sempre SM01.
​

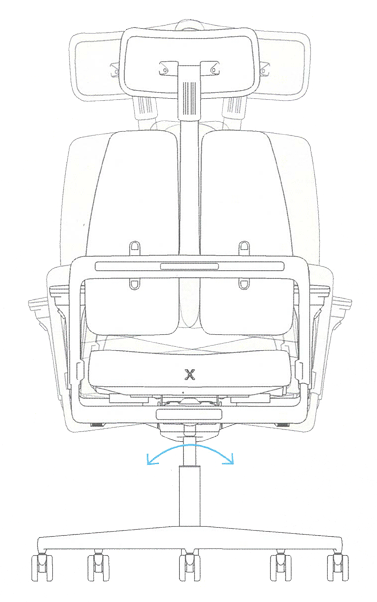

X-MOVE: allows for lateral (side to side) movement of complete backrest with a slight rotation

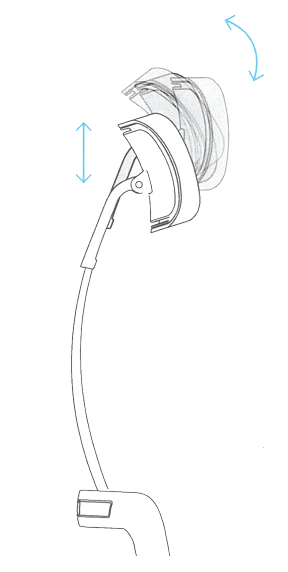

Adjustable neckrest
Structure made of polypropylene (PP) covered with injected foam, thickness 25mm, density 55kg/m2
​
For Xilium-G Red, neckrest upholstered in Sempre SM01 fabric with side panels in Sempre SM12.
​
For Xilium-G Blue, neckrest upholstered in Bondai BN8033 fabric with side panels in Bondai BN6006
​
For Xilium-G B&W, neckrest upholstered in Sempre SM01 with side panels in Sempre SM01.
​
Neckrest outer shell made of black polypropylene (PP)
​
Neckrest vertical support column made of black glass fiber reinforced polyamide (PA + GF)
​
Height adjustment range of 60mm lockable in 7 positions. Depth adjustment of 20mm. Angle adjustable through a total of 96°
armrests

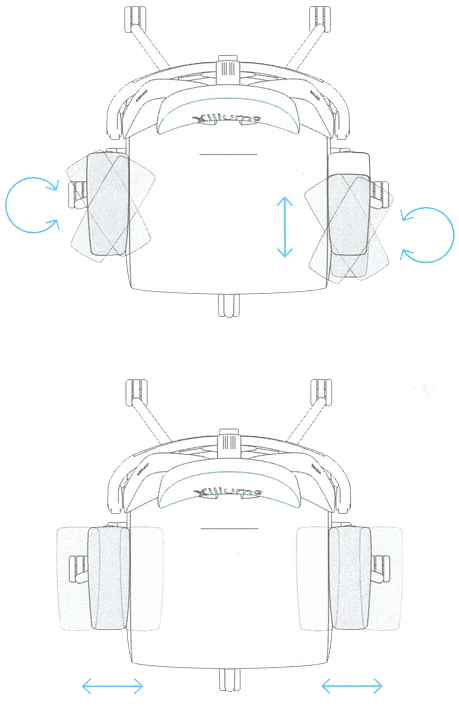

XD Armrests (R55) - armrest bar made of polished aluminium, armrest structure made of glass fiber reinforced polyamide (PA + GF), armrest pad made of soft black polyurethane (BPU)
​

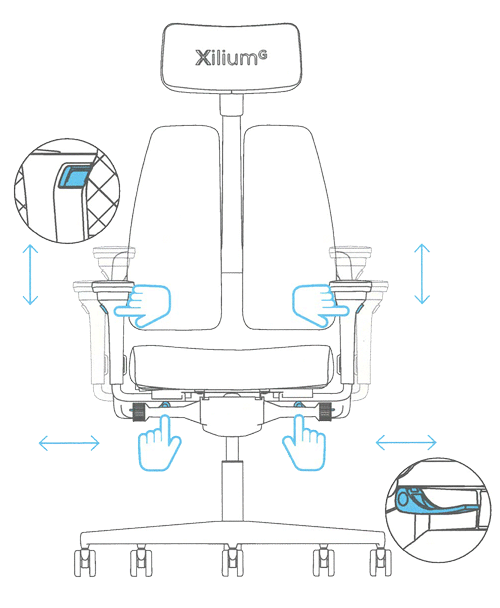

Adjustment range of the armrests: height 100mm, side movement of the armrests 50mm (25mm/arm), forward/backward movement of the pad 40mm, pad rotation - two pivot points: front pivot point +/- 360°, second pivot point for additional rotation: 90° (30° outward and 60° inward)
packing
Chair partially assembled. Box contains 3x elements:
​
-
Seat with assembled mechanism and armrests, backrest with assembled neckrest
-
Base with assembled castors
-
Gas lift
​
Box size 970mm H x 600mm W x 600mm D
technical regulations
-
​GS safety certificate for users' weight up to 150kg
-
Approvals compliant with EN1335
-
Ergonomics Certificate
-
Blue Angle Certificate
Fabric tests & standards
xilium-G red / black & white (sm01)
sempre sm12
composition
100% Polyester
weight
366 g/m2
abrasion resistance
155000 +/- 5000 Martindale cycles
colour fastness to light
EN ISO 105-B02
(3-4)
pilling
sempre sm01
EN ISO 12945-2
(4-5)
colour fastness to rubbing
EN ISO 105-X12
(wet: 4-5 / dry: 4-5)
flammability
EN1021-1
EN 1021-2
other
EU Ecolabel Certificate
Oeko-Tex Standard 100 Certificate
xilium-G blue
bondai bn6006
bondai bn8033
composition
100% Polyester
weight
250 g/m2
abrasion resistance
150000 Martindale cycles
colour fastness to light
EN ISO 105-X12
(min.6)
pilling
EN ISO 12945-2
(5)
colour fastness to rubbing
EN ISO 105-X12
(wet: 4-5 / dry: 4-5)
flammability
EN1021-1
EN 1021-2
BS 5852 Crib 5
BS 7176 medium hazard
other
Oeko-Tex Standard 100 Certificate
from the ground up
Designed for recycling
This is the first time we have started the production of a chair by analyzing the structure of all of the used materials in so much detail. This has been done in order to make Xilium truly unique.
​
Approximately 96% of the materials we use in Xilium chairs are recyclable as and when the chair is no longer required.
A full component break down of XiliumG and what
elements may be recycled can be downloaded here.
Designed to last
Xilium seating has been designed to be durable and to be used for a long period of time. As a result of its' high quality, Xilium seating comes with a five-year warranty.
Right to repair
Most parts of the Xilium chair can be easily replaced. You can replace more than half yourself by using simple tools and instructions for replacing components. In this way, you contribute to reducing the volume of waste
but also save money on your investment, as you do not need to buy a new chair but can instead extend the lifespan of it.
